BHIController Class Reference
[Module to get "higer-level" (force) control of a BarrettHand]

Class for integral controller. More...

#include <bhcontroller.h>

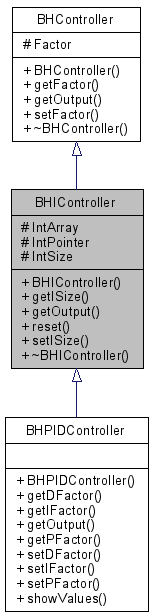

Inheritance diagram for BHIController:

Inheritance graph
[legend]

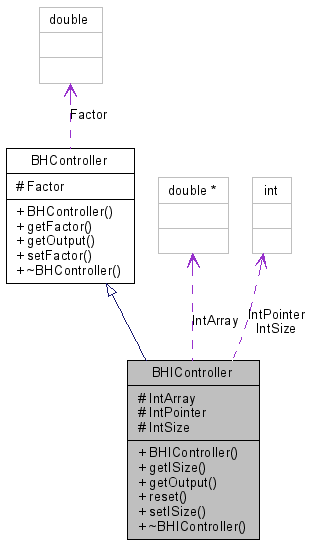

Collaboration diagram for BHIController:

Collaboration graph
[legend]

Public Member Functions

 BHIController (const double factor, const unsigned int size=1)
int getISize ()
double getOutput (const double error)
void reset ()
void setISize (const unsigned int size)
 ~BHIController ()

Protected Attributes

double * IntArray
int IntSize

Detailed Description

Class for integral controller.

This class implements a simple i-controller.


Constructor & Destructor Documentation

BHIController::BHIController ( const double  factor,
const unsigned int  size = 1
) [inline]

Constructor.

Parameters:
factor Factor for controller output.
size Size over how many steps the Integration is done.

BHIController::~BHIController (  )  [inline]

Destructor


Member Function Documentation

int BHIController::getISize (  )  [inline]

Returns the number of integrations done by controller. @ return Number of integrations of controller.

double BHIController::getOutput ( const double  error  )  [inline, virtual]

Computes the output of the controller

Parameters:
error Error of measurement between current and desired value

Implements BHController.

Reimplemented in BHPIDController.

void BHIController::reset (  )  [inline]

Resets the controller. I.e sets all integration values to zero

void BHIController::setISize ( const unsigned int  size  )  [inline]

Method to adjust integration size.


Field Documentation

double* BHIController::IntArray [protected]

Array storing the last "size" values of integration

int BHIController::IntSize [protected]

Size (number of integrations) for the controller


The documentation for this class was generated from the following file:
